Diagram appropriate to the fan model. Onoff switch must be situated so that it cannot be touched by persons making use of the bath or shower.
Download Xpelair 91196aw Ebook On Operation Manual For Iphone

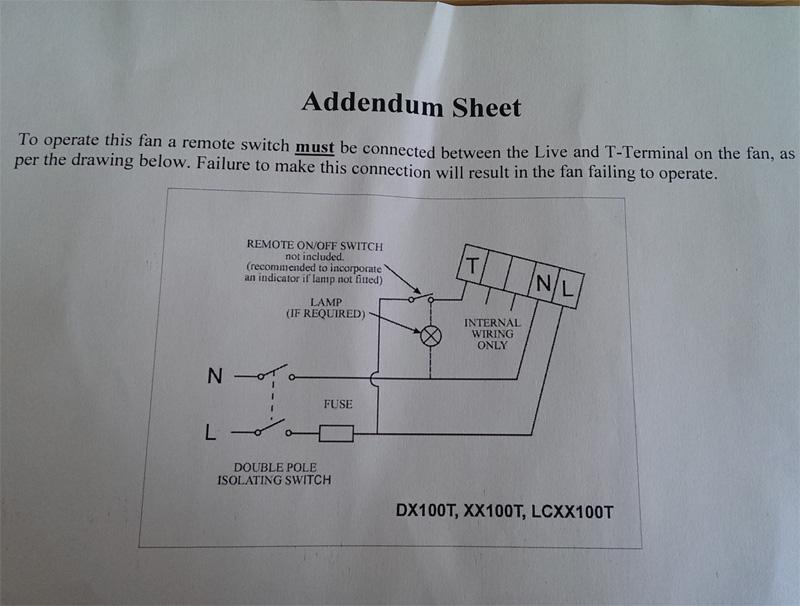

Xpelair dx100t wiring diagram. Dx100t fan 220 240v 5060hz 4320 in order to improve our service to you we are undergoing key systems upgrades there may be delays on dispatch and delivery of all online orders. Feed the cable to the terminal block. 3mm electricians screwdriver and no1 or 2 pozdriv screwdrivers. Do install each fan with a means for disconnection in all poles in the fixed wiring. Connect the cable from the isolating switch. Dx100h dx100hp if in doubt seek professional advise.
If installing in a ceiling fans dx100 1. Xpelair simply silent dx100 installation and maintenance instructions installatie en onderhoudsinstructies. If installing in a ceiling fans dx100 1. Xpelair wiring diagrams 168 xpelair xim xim100100125 xim100t xim150200 xim150t xpelair slimline 150 xpelair britex lovolt britex turbo bx100wcbx100wc bx100wtctbx100wtct slimline sl150 slimline sl150p. Xct100 must be. Check there are no buried pipes or cables dx100pc dx100t in the ceilingjoists etc.
Page 6 xpelair necessary positioning condensation trap as toiletbathroom near to the fan as possible. Connect the cable from the isolating switch to the electrical supply wiring. Wire the fan as shown in figure h using the diagram appropriate to the fan model. A wall or ceiling onoff switch with built in indicator light dx100 dx100t and dx100vtd. Suitably rated 3 core cable dx100t dx100h and dx100vtd. To prevent a possible hazardous situation from water ingress a condensation trap xpelair no.
