Description one 1 internal wiring harness one 1 external wiring harness one 1 vacuum switch. This easy to install lockup wiring kit for 700r4 and 2004r transmissions from tci allows hands free automatic activation of the torque converter clutch in 4th gear under stable engine operation and disengages the clutch when accelerating or down shifting.
700r4 Lockup In 4th Gear Wiring Help Corvetteforum

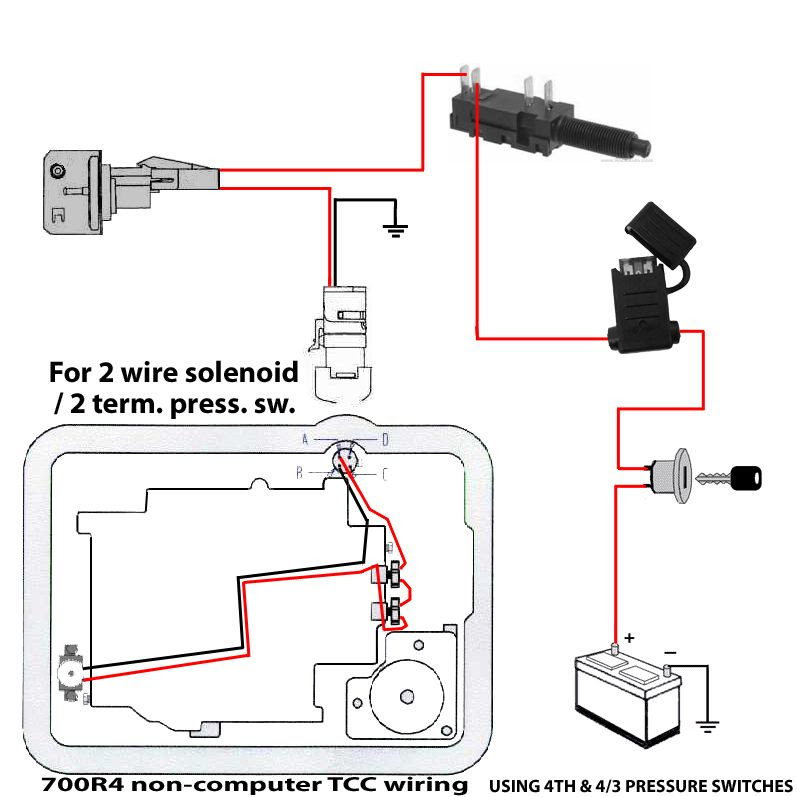

Tci 700r4 lockup kit wiring diagram. Real world wiring diagram the fuse holders connect to the vehicles fuse block. You can also wire a manual switch to override the vacuum and brake switch if you wanted to. I have a700r4 in my truck with a. 200 4r external lock up kit 200r4 lockup wiring diagram you are able to often rely on wiring diagram as an essential reference that can assist you to save time and 5 2 1 compressor saver wiring diagram. 700r4 transmission lock up wiring diagram tci 700r4 lockup kit wiring diagram tci 700r4 lockup wiring diagram 700r4 torque converter lockup wiring diagram. Will vance goes over internal wiring installation on the tci 200r4700r4 lock up kit.
August 14 2018 april 12 2020. Tci 376600 kit contains. Discussion in the hokey ass message board started by 31aboy nov 19 2011. They allow automatic operation of the tcc in 4th gear under stable engine operation and disengage the clutch when accelerating or downshifting. Tci 376600 universal tcc lock up kit for 700r4 and 2004r this kit enables hands free automatic activation of the torque converter clutch tcc along with the option of manual control. It consists of guidelines and diagrams for different varieties of wiring strategies and other items like lights home windows and so forth.
The center terminal of the switch is connected to the wire that leads. Description one 1 internal wiring harness one 1 external wiring harness one 1 vacuum switch. Need help wiring adjustable vacuum lockup switch for a 700r4. Fuse holder connects to the lighted manual switchs bottom terminal providing the 12v power source. Tci 376600 kit contains. Installation of these tci 2004r700r4 lockup wiring kits makes retrofits into non ecm 700r4 or 2004r vehicles a snap.
Also look at the instructions for the tci lockup kit and it explains it. 700r4 external lockup kit installation instructions. Find tci 2004r700r4 lockup wiring kits 376600 and get free shipping on orders over 99 at summit racing. Tci 376600 universal lock up kit 700r4 and 2004r this kit enables hands free automatic activation of the torque converter clutch tcc along with the option of manual control. This universal lockup wiring kit is needed when installing a gm 700r4 or 2004r transmission in a non computer controlled application. Tci 700r4 lockup kit instructions will definitely help you in increasing the efficiency of your work.
Follow these easy steps. 700r4 plug wiring diagram wiring diagrams hubs 700r4 lockup wiring diagram wiring diagram contains several detailed illustrations that present the connection of varied things.
