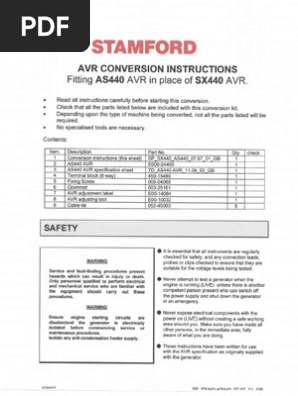

Keep the screws for use with the new avr. Preparinq the new as440 avr step 2 preparing the new as440 avr.
For Avr Wiring Diagram Tuli Gain Seblock De

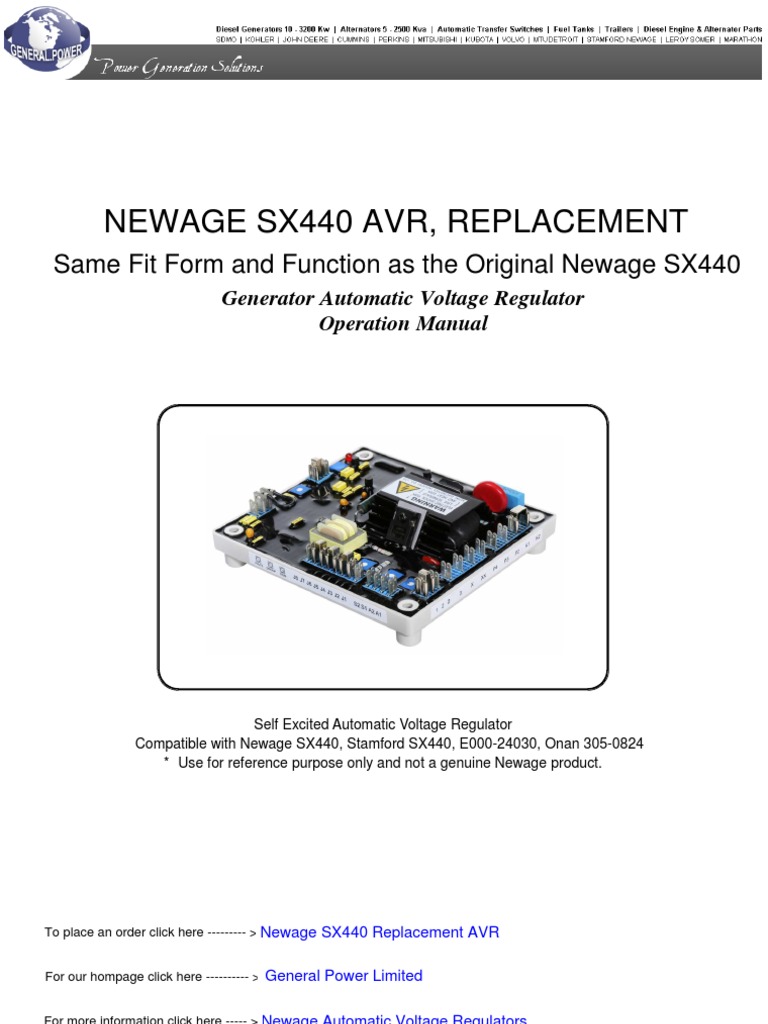

Sx440 avr wiring diagram pdf. A wiring diagram is a streamlined standard photographic depiction of an electric circuit. Under frequency roll off ufro adjustment. 9 13 disconnect all the leads from the sx440 avr. Collection of sx460 avr wiring diagram. Refer to generator wiring diagram for connection details. Sx440 generator automatic voltage regulator operation manual self excited automatic voltage regulator compatible with newage sx440 use for reference purpose only and not a genuine newage product.
A set of wiring diagrams may be required by the electrical inspection authority to agree to association of the habitat to the public electrical supply system. Exciter stator not mm to be k2kip2p3p4xxx3 sx440 221 a2 7 man stator 8 connectiœ1s when fitted when fitted when fitted fig 2. 11 remove the appropriate covers to gain full access to the avr and its mounting plate. Tdsx440gb050302 sx440 automatic voltage regulator avr specification installation and adjustments general description technical specification sx440 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator. 12 make sure that all the existing avr connection leads fig 1 are clearly identified. Link terminals on the new.
Sx440 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator. Field input external switch terminals. Sx440 automatic voltage regulator avr specification installation and adjustments general description the sx440 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brushless generator. Basler generator wiring diagram wiring library wiring diagram avr sx440. 14 unscrew the 4 avr fixings and remove the avr. Unscrew the 4 avr fixings and remove the avr.
Stamford mx322 automatic voltage regulator. Sx460 automatic voltage regulator avr specification installation and adjustments general description technical specification sx460 is a half wave phase controlled thyristor type. It reveals the elements of the circuit as streamlined forms as well as the power and signal connections in between the tools. Keep the screws for use with the new avr. 1 2 in addition to regulating the generator voltagethe avr circuitry includes under speed and sensing loss protection features. Newage dm710 digital excitation control system.
Fitting and operating tdsx460 avr gb040506gb. Show footer hide footer. Stamford sx460 automatic voltage regulator.
