Complete single door laundromat magnetic lock kit without or with key switch access systems. Electromagnetic locks use electricity to make metal temporarily magnetic.
Wiring Diagram Mag Lock Biometric V1 6 In Magnetic Door Mag

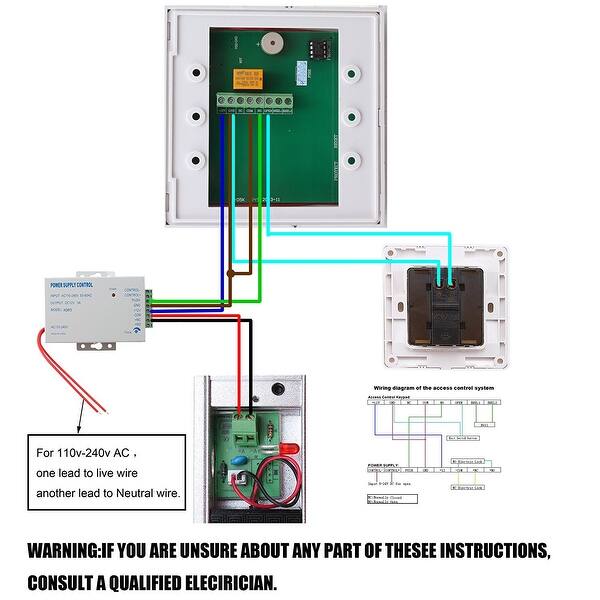

Magnetic door lock wiring diagram. When that power is cut the magnet essentially turns off undoing the lock and allowing the door to open freely. It starts at the positive terminal of the power supply travels through the exit and entry switches into the positive terminal of the magnetic lock and out through the negative terminal of the mag back in through the negative terminal of the power supply. If this is not available you may use an ac power source and wire inline a full wave bridge rectifier. A wiring diagram is a streamlined conventional pictorial depiction of an electrical circuit. Magnetic lock setup guide introduction. Here is a sample diagram of how kisi readers and controllers are wired to a magnetic lock.
July 17 2018 by larry a. Wellborn collection of magnetic door lock wiring diagram. This guide will take you through the basics of connecting the components together. Wired in series power supply for fail safe strikes and magnetic locks should be dc. This will conver t the ac to dc. And a magnetic coded lock exactly like the nearly unpickable lock evva mcs is a mixture of a standard lock and a magnetic keyed lock.
It shows the components of the circuit as simplified shapes and also the power as well as signal connections in between the gadgets. The controller is connected to both the lock and the lock power supply so that it can cut off the power when it judges that the door should be unlocked. How to wire a garage diagram sample. Magnetic door switch wiring diagram collections of magnetic door switch wiring diagram download. Door access control wiring diagram awesome visonic vxs10 single door. Magnetic locks also referred to as mag locks or maglocks for short rely on a constant flow of electricity to stay sealed.
Lock n a box kits. Complete single door laundromat magnetic lock kit kp 200 digital keypad wiring diagram. Wiring diagram for magnetic door lock best valid wiring diagram. A magnetic keyed lock uses variations in the push and pull of a magnetic key to set the pins. Kisi wiring diagram magnetic lock wiring diagram. Magnetic lock systems are fairly simple to set up.
Electricity supply switches and of course locks. There is a dedicated lock power supply and a separate power supply for the controller. It will give you a general idea of how the wiring should be completed while leaving out details such as mounting the components to a door or wall. Much like the door access control system diagram above the mag lock wiring diagram relies on a few simple basics. Wiring instructions magnetic lock or fail safe strike with button keypad maintained button and remote receiver. In the simple diagram above you can see that the electricity travels in an unbroken loop.
