David hamer and frode weierud wiring of norway enigma personal correspondence 2001. Each rotor has different fixed internal random fashioned wiring from the left side to the right side of the wheel.
Enigma Machine Wikipedia
Enigma wiring diagram. An abwehr enigma cryptologia january 2000 volume xxiv number 1. Each contact on one side is connected wired to a contact on the other side in some random fashion. The swiss frequently rewired their enigmas and also modified the stepping of the army machines. The previous 3 rotor enigma model had been modified with the old reflector replaced by a thin rotor and a new thin reflector. Two views of the wiring of an enigma rotor. Enigma machine wiring diagram.
Alphabets progress clockwise when viewed through the eintrittwalze along the wheel axis. Breaking shark on 3 rotor bombes would have taken 50 to 100 times as long as an average air force or. All wiring measurements are made per convention with ringstellung a. Enigma is intended to be an open extensible system. Wiring diagram the enigma machine is an electro mechanical device. This diagram has the same wiring as indicated by the connection between a on the right and e on the left.
Recovering the wiring of enigmas umkehrwalze a cryptologia january 2000 volume xxiv number 1 pp. Us military attaché in argentine intelligence report about g 260. The heart of the enigma is the rotor wiring. To simplify the example only four components of each are shown. Simplified circuit diagram of a 3 wheel service enigma letters are scrambled by a set of rotatable wheels each with 26 contacts on either side. The current flows from the battery 1 through the depressed bi directional letter switch 2 to the plugboard 3.

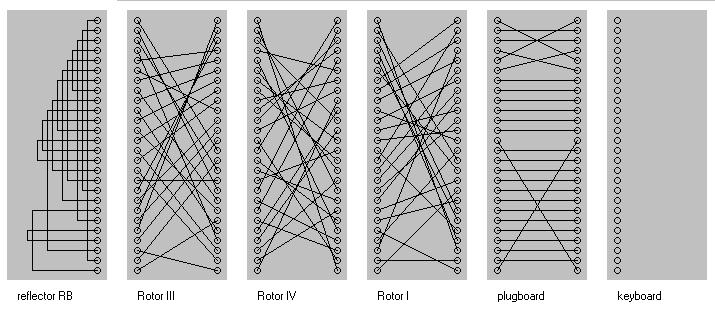

Each rotor has 26 spring loaded terminals on its right side and 26 flat circular terminals on its left side. One or more rotors move on each key stroke. To explain the enigma we use this wiring diagram. For this we study the circuit diagram of a standard 3 wheel wehrmacht enigma. It consists of a keyboard german qwertz layout a lamp panel representing the alphabet and three or four rotors. The terminals are arranged in circular mode.
On 1 february 1942 the enigma messages began to be encoded using a new enigma version that had been brought into use. Trace the battery voltage through the keyboard letter q the plugboard the rotors the plugboard again the keyboard again and ultimately to the light bulb letter w. This example is of a swiss air force enigma. In reality there are 26 lamps keys plugs and wirings inside the rotors. Traditionally an efis manufacturer would develop a system and then closely guard all data formats encrypted if required. When you look at this unrolled view you have to keep in mind that the top and bottom of the rectangle are in fact connected together to form a circle.
