Plug the cord into a surge protector. Your setting up procedure is complete now connect the heater via the relay contacts as shown in the diagram check and enjoy the automatic response as per the above settings.
Amazon Com Automatic Humidity Temperature Control

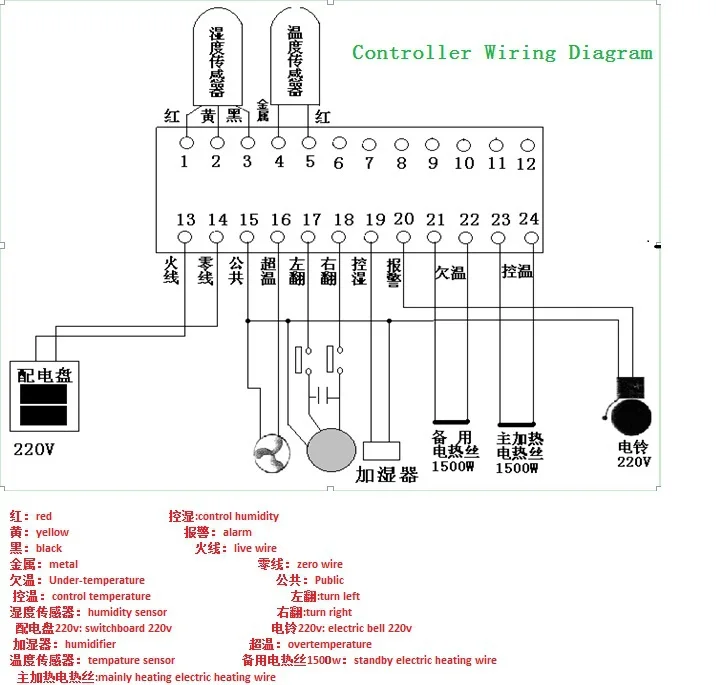

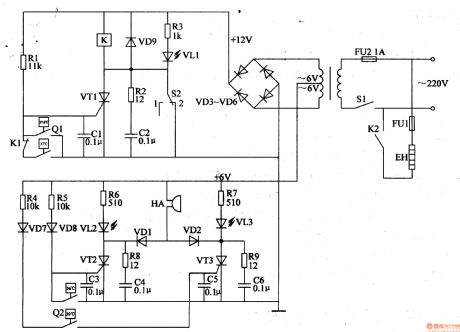

Automatic egg incubator wiring diagram. Before leaving factory which meets settings required by incubation. Place the automatic egg turner in the incubator so it fits flat on all four corners over the wire mesh floor. 14 scope and limitation this work is limited to the design and fabrication of an automatic egg incubator with a turning mechanism to produce 60 day old chicks in one batch. Fill the water pan or pans with warm water. Controller wiring diagram welcome to use our automatic incubator by computer. On 240400 volt model attach plug required by country standards.

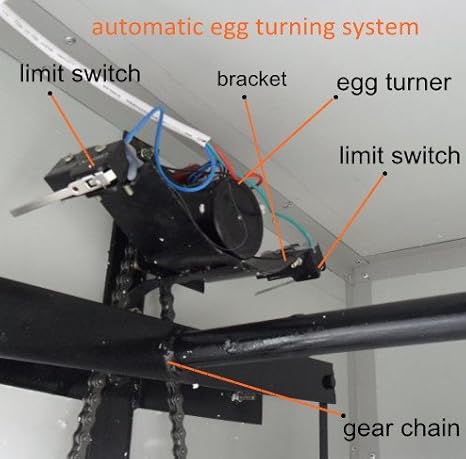

How to use the incubator place the eggs carefully into the egg turner. To design and fabricate an affordable automatic egg incubator of 60 eggs capacity. To test the incubator and determine the efficiency of the automatic egg incubator. The micro computer controller has been made adjustment for temperature humidity egg turing exhaust etc. Please pay attention to the following aspects in use. Plug the surge protec tor into a 110 volt gfci protected outlet.
Many automatic egg incubators have been developed with bulb lamps as heating media. Turn on the incubator and the egg turner. The larger end of each egg should be on the top the pointy end should be closest to the floor. However this automatic egg incubator still uses analog sensors to measure temperature and humidity in the. Automatic home made incubator circuit diagram requirement 12v adapter ac motor 5rpm digital timer switch w1209 thermostat lamps dc fan facebook httpswwwf. Here we present the electrical connection diagram of our automatic incubator.
