This designation was made specifically for trailers. The 30 amp service for an rv is 120 volt with a 3 prong receptacle and a single 30 amp dedicated breaker.
Journeyman Pro 30 Amp Plug Amp Connector Set Nema Tt 30p Tt 30r 125v Straight Blade Rv Trailer Plug Connector Combo Black Yellow Industrial

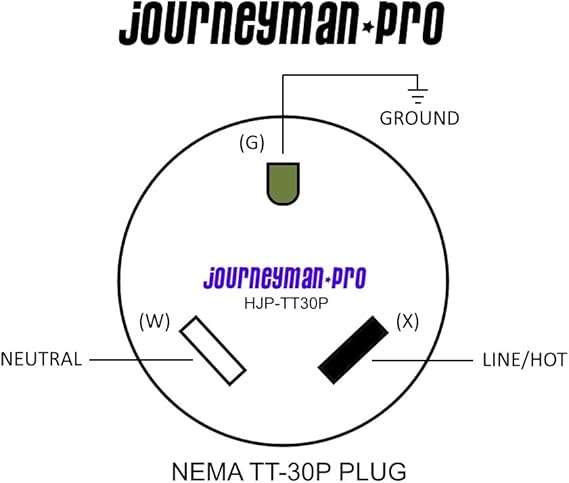

Tt 30p wiring diagram. It is manufactured and used specifically for all types of recreational vehicles rvs. 1 tt 30 receptacle and 1 black hot 1 white neutral and 1 ground correctly sized wire the 30 amp service for an rv is 120 volt with a 3 prong receptacle and a single 30 amp dedicated breaker. The 30 amp is a standard ansi c7313 tt 30p plug tt 30r receptacle. Plugs and receptacles are available at lowes home depot camping world and electric supply houses. It has two angled flat blades and one. It is important to note that this connector is not interchangeable with nema 1030 which looks similar but is used for 120240v service.
The plug is american national standards institute ansi stock designated tt 30p. The 30 amp is a standard ansi c7313 tt 30p plug tt 30r receptacle. A commercial adapter that uses a l to a tt will most certainly be wired to connect to one hot pin on the l and leave the other that is an excellent diagramwiring diagram nema tt 30p adapter cords usa nema 14 50r v 40 a 10 kw further 30 v wiring diagram moreover 30 service in addition nema 14 20r wiring diagram together with nema l6 20 wiring. Black or red lead goes to line white to neutral w and green to ground see the diagram above. The 30 amp rv plug is colloquially known as an rv 30. The mating plug tt 30p is suitable for cables with three 10 awg wires.
Plugs and receptacles are available at lowes home depot camping. The 30 amp rv plug is a three pronged male cable end. The 30 amp is a standard ansi c7313 tt 30p plug tt 30r receptacle. This designation was made specifically for trailers. This designation was made specifically for trailers. The 30 amp service for an rv is 120 volt with a 3 prong receptacle and a single 30 amp dedicated breaker.
