Siren is option 616 knowing about the type of the door trigger is positive or negative trigger. Turn on the tracker device 63 turn on the tracker device.
Tk103 Vehicle Car Gps Tracker Car Alarm Gps 103 Quadband Cut

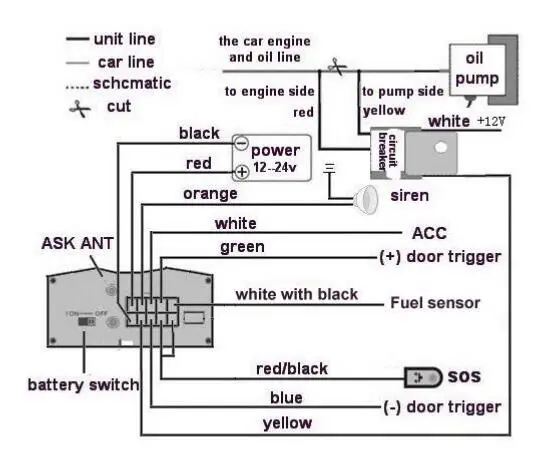

Tk103 wiring diagram. Instructions sent to the unit that are upper case or start in upper case will be ignored by the unit. It can also be connected to the siren you buy with the tracker. Instructions for tk103 gps tracker. A must watch for anyone wanting to install the tk103 into their vehicle. Please connect the green wire to the door control circuit if it is positive and connect blue wire if it is negative. Assortment of intermatic t103 wiring diagram.
Bench test gps 103b i bench test a 103b gps tracker to ensure it works before installation. Full instructions on pdf. It shows the elements of the circuit as streamlined shapes as well as the power as well as signal links between the devices. 516 know about the type of the door trigger is positive or negative trigger. Wiring diagram 615 note. Tk103 gps tracker manual.
Tk103 gps tracker manual author. Please connect the orange wire to the door control circuit if it is positive and connect purple wire if it is negative. Wiring diagram showing what wire to turn horn on when fuel is cut and wire added red that is missing from. All instructions sent to the gps unit via sms must be in lower case letters only. 7 installationstepscautionthefollowinginstallationshouldundernopowerotherwisewillbedangerous 53startup 531 installedthetrackerinthecar. Please connect the green wire to the door control circuit if it is positive.
Tk103 b gps tracker installation big guy review tk103 b installation. The orange wire can be connected to the original car alarm horn. It can also be connected to the siren you buy with the tracker. A wiring diagram is a streamlined traditional pictorial representation of an electric circuit. Wiring diagram 515 note. Car gps tracker tk103 how to setup a gps tracker model tk103.
Siren is option 616 knowing about the type of t he door trigger is positive or ne gative trigger. 631 connect the positive and negative wire red and black ones with 12v or 24v car power system wait for 1 minute after connecting power to wait tracker. Tk103 gps tracker manual keywords. The orange wire can be connected to the original car horn. نظام جي بي إس واكس برنامج مجاني للتتبع عبر جي بي إس متوافق مع كل أجهزة تتبع جي بي إس الأخرى duration. The blue wire can be connected to the original car alarm horn.
