Tado wiring diagram. The wiring diagram on the back of the device shows the wiring for the relay operation. If you want to control several devices with tado you need a tado smart air conditioning control for each device. Contents optional accessory 5 1. Reduce your heating bill by up to 31 and still enjoy a warm home when you arrive. The diagrams seem to imply that i need 240v power cable that is wired into the extension kit with a standard uk 3 pin plug going into a normal socket. Three low voltage terminals for analog and bus connection are located on the far right hand side of the smart thermostat.

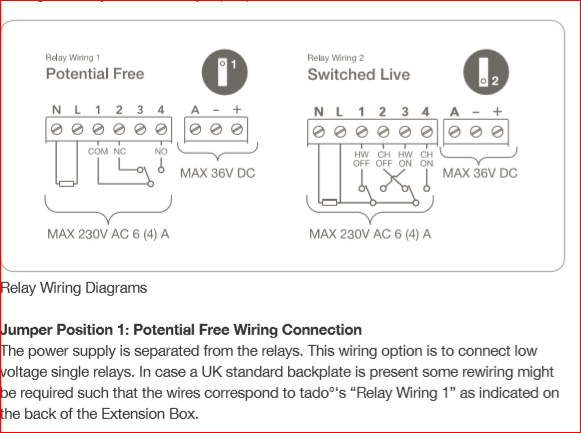

Pair extension kit with internet bridge 11 4. The wiring diagram on the back of the device shows the wiring for the relay operation three isolated parking slots for excess wiring from the thermostat which is to be replaced and three low voltage terminals for analog and bus connection. Wiring smart thermostat combi boilers dry contacts 6 extension kit combi boilers dry contacts 7 extension kit s plan setups switched live 8 extension kit y plan setups switched live 9 2. Also i notice there is an earth terminal in the extension kit does this mean that a three core cable is required. Control your ac or heat pump with your smartphone anytime and from anywhere. Its wired thus.

There are three unlabelled isolated parking slots for unrequired wiring from the thermostat which is being replaced. Live to a and neutral to b. Connect internet bridge to router 10 3. Tado notices open windows and lets you turn off the heat effortlessly. The tado smart thermostat supports both 230v and extra low voltage interfaces. Just trying to figure out the tado smart thermostat wiring from our current system which i think should be simple but wanted to be sure as the tado setup site didnt detect my setup.

The tado smart ac control replaces your existing remote control and connects to your wi fi without additional wiring. Set up your tado system with several smart thermostats and smart radiator thermostats. We have a ferroli modena 27c he and a honeywell t6620b thermostat. The in cases where the tado smart thermostat does not replace an existing wired wiring diagram on the back of the device shows the wiring for the relay operation three thermostat it can be placed in any appropriate location. Replace your ac remote with tado. For all manufacturers for old and new boilers in combination with radiator thermostats or without.

Control the heating in each room individually.
