Otrattw wiring diagram. Apr 26 2015 406am. Spod daystar and painless performance 1 408 252 1544 special. Carling tech rocker switch. Otrattw contura custom laser etched and ink printed rockers are compatible with all carling technologies v series switches incl. So here is my plan and i want to get ideas on how to get there. Alright all i know there are lots of topics on our site about wiring auxiliary lighting but i couldnt find anything regarding otrattw switches.
Apr 26 2015 339am. Normally connected to dash light circuit to be on when your dash lights are on. Using the spod would be the easiest but no way the wife is going to approve a 400. 7 3 6 6 connect2 from your source with the. Graphic area lights up when dash or ignition is turned on text lights up when switch is activated. No worries from the battery and for your ground wire 8 awg will be more than sufficient.

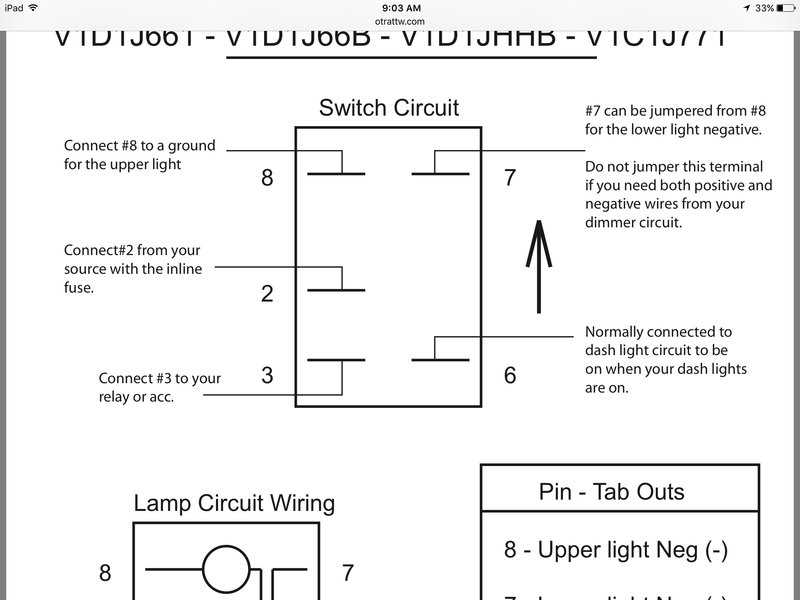

Contura v laser etched rocker switches accessories drivetrain lighting novelty marine. You do not have the required permissions to view the files attached to this post. To and from the powerground block and switches i would. Wiring diagrams both incandscent and led lighted switches that have the same first five 5 alphanumeric symbols in the product code are internally wired the same. Text area lights up when dash or ignition is turned on graphic lights up when switch is activated. The standard in high quality custom rocker switches for all of your auto and marine applications.
Otrattw and leapfrog studios take no responsibility for damage accidents or injuries resulting from the installation of carling technology switches and accessories bussmann electrical accessories and tyco products. Otrattw is not responsible for lost or stolen packages. Carling tech contura ii rocker switches with blue lens rockers with red lens rockers with green lens rockers with amber lens rockers with whiteother rockers. For example a v1d1f66b switch and a v1d1fccb switch would use the v1d1fxxb wiring diagram. Wiring diagrams wiring diagrams are now available for download. Click on the following link wiring diagrams.
Graphic area lights up when switch is activated. Apr 25 2015 1054pm.
