Terminal s21 must not be connected to pe. Msr138dp 10s fixed 115v ac 440r m23080 015 3s 24v acdc 440r m23143 115v ac 440r m23141 230v ac 440r m23140.
How To Configure A Guardmaster Safety Relay

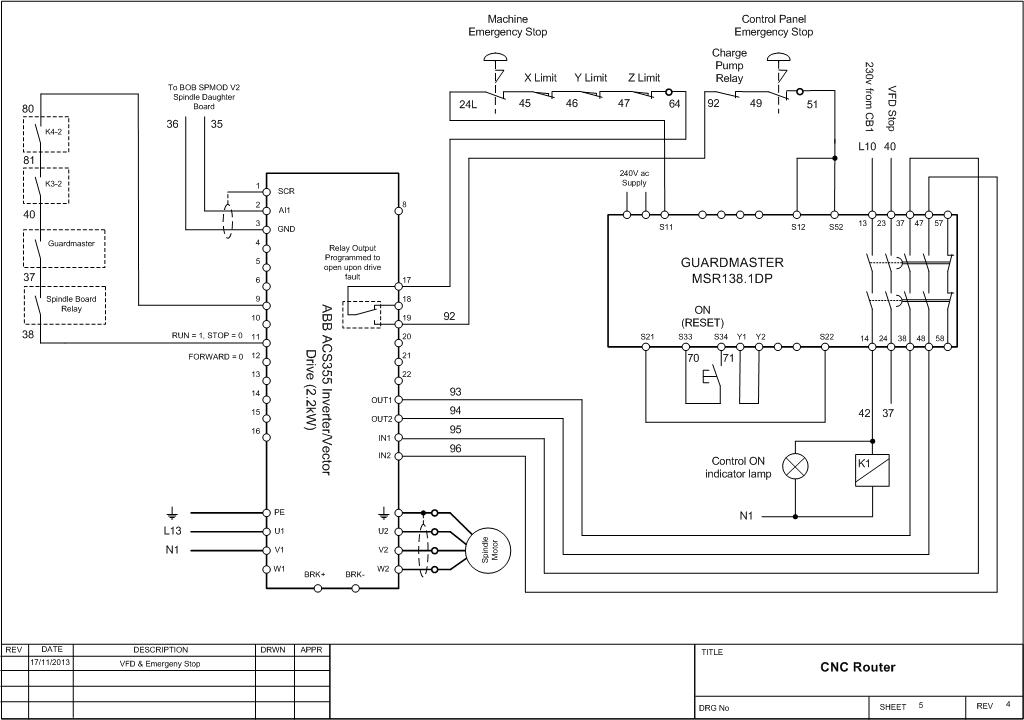

Msr138dp wiring diagram. When connected in the two normally closed fashion the msr138dp checks for cross faults across the two inputs. Msr138dp est équipé de réglettes à bornes amovibles facilitant son installation. Msr138dp msr1381dp r a a bei einsatz mit 24v ac versorgung darf klemme s21 nicht an pe angeschlossen. Or light curtain 2 no. Typical wiring diagrams s52 s12 s21s22 s33 a2 x2x1 x3 x4 y39y40 y2 y1 a1 s11 s34 14 24 13 3 32 7 47 57 l1 k1 l2 k2 l3 38 48 58 k1 k2 d1 d2 m 24v dc ground indicator timer override e stop reset d1 d2 delayed output load msr138dp s52 s21 s22s12. Terminal s21 must not be connected to pe.
When connected to light curtains the light curtain must perform the cross fault detection. Wiring leitungsmaterial cablâge cablaggio cableado. The msr138dp can be connected in 3 different input wiring configurations. Safety relays4 49monitoring safety relays with delayed outputsminotaur msr138dpproduct selectiondimensionsmm inchesblock diagramtypical wiring diagramsinputssafety outputs datasheet search datasheets datasheet search site for electronic components and semiconductors integrated circuits diodes and other semiconductors. Minotaur msr138dp product selection dimensionsmm inches block diagram typical wiring diagrams inputs safety outputs safety delayed outputs time delay power supply catalogue number 1 nc. Deutsch français d circuit diagramabmessungsdiagrammschema des connexions in applications with 24v ac supply.

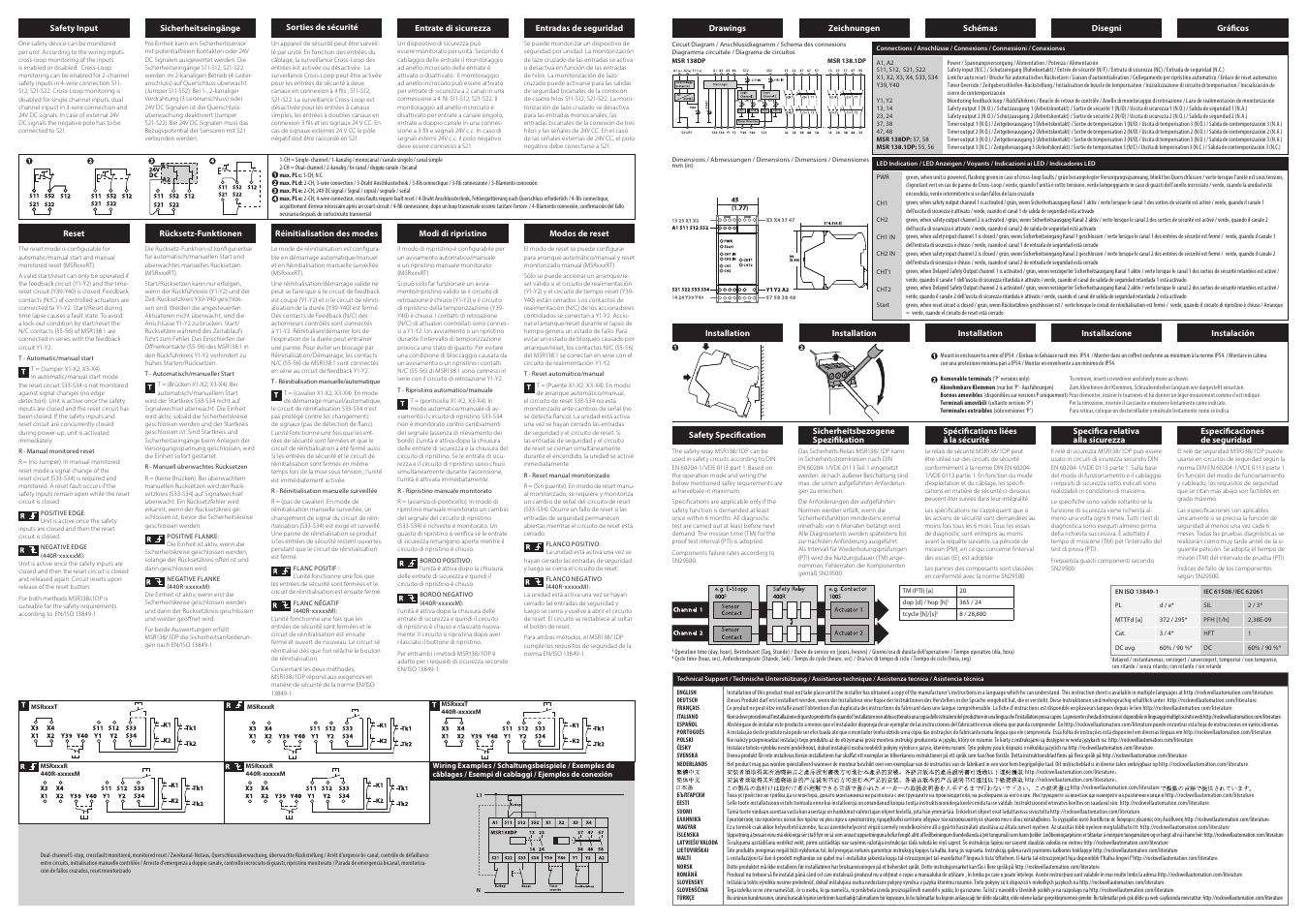

1 normally closed 2 normally closed or 2 ossd. Msr138dp msr1381dp in applications with 24v ac supply. Msr1381dp monitoring safety relay installation instructions sicherheitsrelais installationsanleitung relais de sécurité de surveillance notice dinstallation relé di monitoraggio di sicurezza istruzioni per linstallazione.
