Pid Controlled Knife Tempering Oven How To Wire

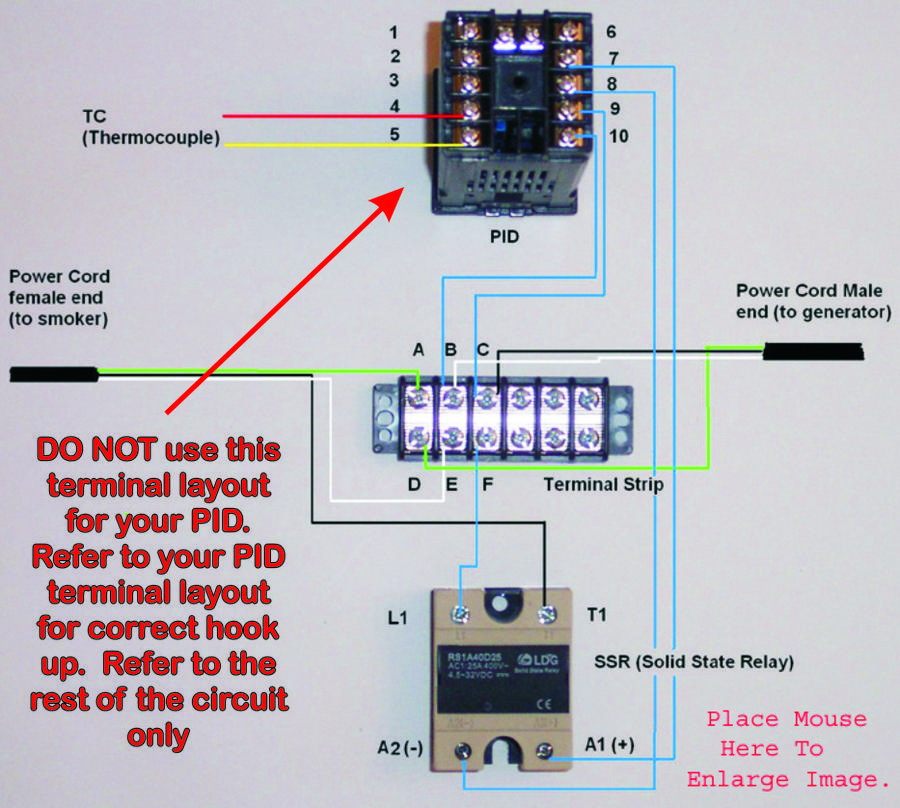

Inkbird pid wiring diagram. How to wire the inkbird itc100vh pid with a pt100 thermocouple ideal accurate temperature control solution for powder coating ovens when curing powder coating work it is beneficial to have an. View and download inkbird itc 100 user manual online. Pid wiring diagram wiring diagram for the inkbird itc 100vh pid. In my case im in the uk and the standard mains power is 230 volts ac. Other makes and models will need to be wired differently. This warranty is limited to the repair or replacement at inkbirds discretion of all or part of the thermostat.
Support multiple thermocouples and resistance sensors k s wre t e j b n cu50 pt100 wide controlling range. Here you can download our latest user manuals drivers and other supporting materials from inkbird support department. If you know how to translate it wiring everything up is quite simple. 501300 k sensor high accuracy of displaying and controlling 01 accuracy of measurement 02fs. Lets start with the temperature sensor. It reveals the components of the circuit as streamlined shapes and the power and also signal connections in between the devices.
The power source is the mains in your neck of the woods. If you are using a 3 wire sensor then it connects to terminals 3 4 and 5. Itc 100 controller pdf manual download. In the instruction manual for your pid and possibly on a sticker on the case will be a wiring diagram like the one above. Collection of pid temperature controller wiring diagram. A wiring diagram is a simplified standard photographic representation of an electric circuit.
