All bender isolated power panels excluding panels with circuit control option 1b contain eight 8 two pole 20 a circuit breakers field ex pandable to 16 circuits. Standard sizes range from 3 to 10 kva for typical equipment primary voltages.
Isolation Transformer What You Need To Know
Hospital isolation panel wiring diagram. Put up by tops stars team from december 3 2013. Hospital isolated power systems class 4800 contents description page general information and application. Diagram grade hospital. Leviton decora hospital grade duplex receptacles cableorganizer within hospital grade receptacle wiring diagram image size 632 x 419 px and to view image details please click the image. 480 380 277 240 230 220 208 120 or 110 vac 1 phase 60 hz. Here is a picture gallery about hospital grade receptacle wiring diagram complete with the description of the image please find the image you need.
Conductors under fault condition gfci class a line 2 neutral isolated power. 3 5 75 10 15 25 kva. Hospital grade isolation transformer. Isolation power panel incorporates the square d products into the ul listed nfpa 99 power system consisting of the following. Alarm indicated by a line isolation monitor. Each system has its own set of equipment.

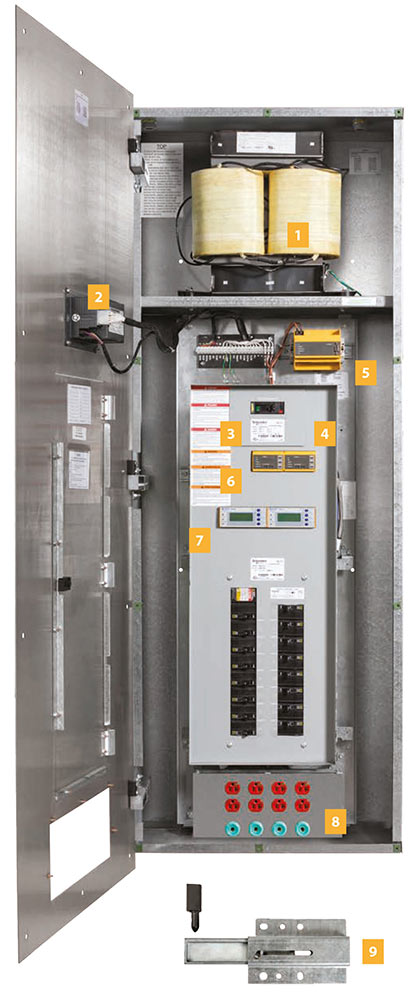

Fault condition fault i. 120 208 240 277 or. For electrical design criteria related to power supply see documents listed in table 9 1. Back box requires a 14 inch deep wall each panel supplies up to 16 120 v circuits plus. Each feeder shall be able to carry the full hospital. The interior step 1 isolation transformer step 2 backbox and front trim steps 3 and 4.
Square d duplex isolation power panel the duplex hospital isolation panel is a single enclosure containing two complete 120 v secondary hospital isolation systems. 23 normal hospital source. Hospital grade isolation transformers from schneider electric provide isolation between system voltage and load requirements. Duplex panels are used when multiple panels are required in an operating room andor more than 16 circuits are required dual voltage panels dual voltage panels supply both 120 v and 208 v isolated power to an operating room. This photograph recep isolated power system wiring diagram isolation panel wiring within hospital grade receptacle wiring diagram over can be labelled using. A divider in the units backbox separates the systems from top to bottom and front to back.
Hospitals will be served by two primary service feeders each serving one end of a double ended substation or to a selector switch serving a multi ended network substation. Benders complete isolated power panels are comprise of four assembly types. Like or panel but includes receptacles andor ground jacks on front panel ix dual duplex panel two operating room panels in one enclosure.
