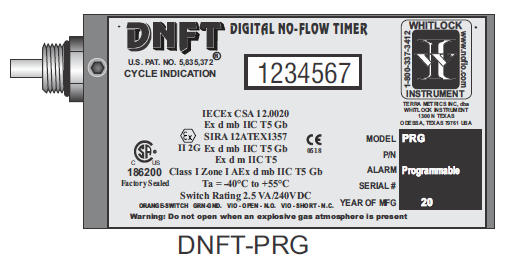

The digital no flow timer incorporates a crystal oscillator to accurately monitor the cycle time of the lubrication system enabling precision timed shutdown capability. Advanced panels can watch both the no flow alarm signal from the dnft and the proximity switch circuit allowing customized alarms and shutdowns as well as cycle time and.

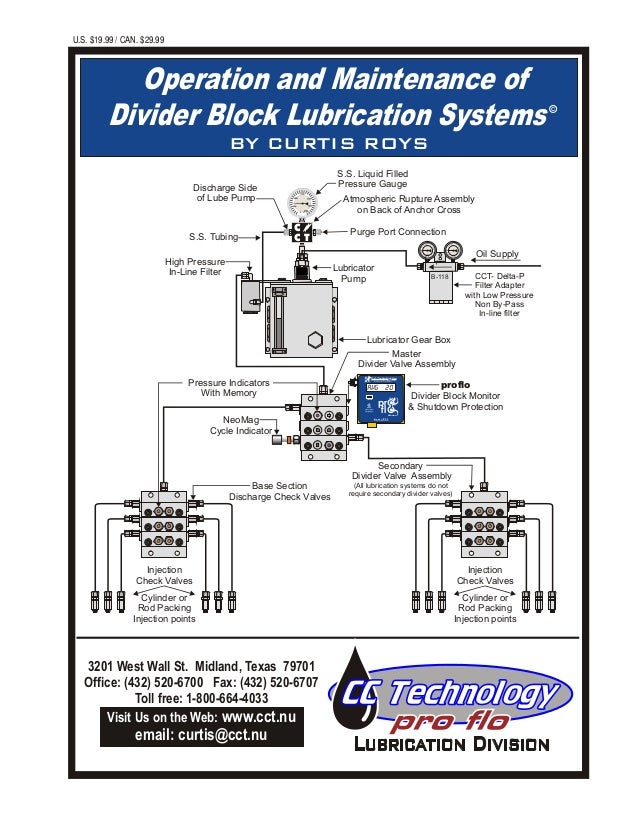

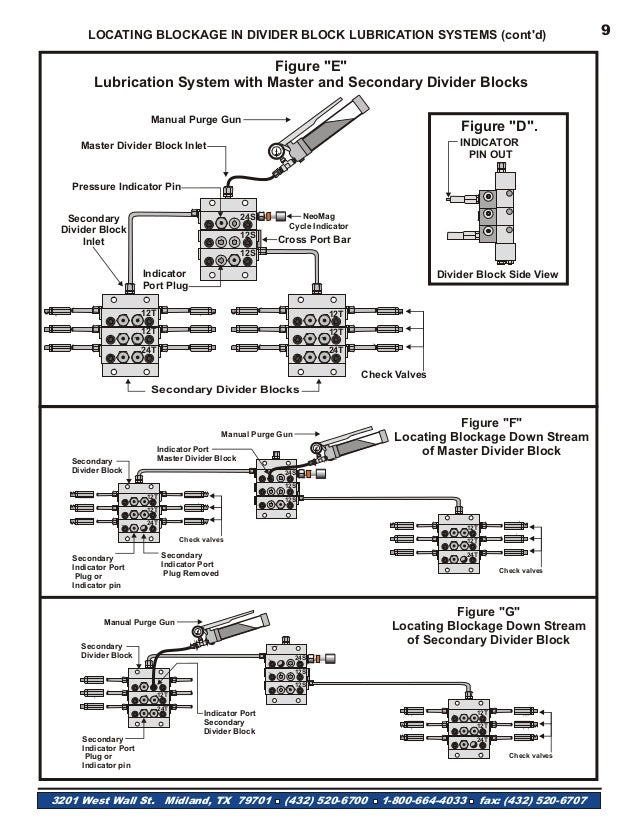

Operation And Maintenance Of Divider Block Systems
Dnft no flow wiring diagram. The entron water flow switch option wfs includes 1 water flow switch assembly 600297 004 equipped with 38 hose barb fittings. Popr pop open pressure relief valve popr. If the water flow is impeded slowed overheated system components may be damaged. Wiring diagrams that accompany ariel dnfts present a visual representation of how to successfully connect your digital no flow timer. Additional wiring information is available in er 5607 including how to properly ground your dnft a potential source for dnft headaches that is easily prevented. Whitlock dnft 2 free download as pdf file pdf text file txt or read online for free.
An internal lithium battery powers it which is easily replaceable. A flow rate of less than 75 gallonsmin. Shut down devices pjr1701ltr installation bulletin. Proflo 24 vdc power sales bulletin. Either use the no flow switch to directly shutdown the unit or use the included proximity switch with the package control panel to create customized control logic. Safeguard 5000 lubrication system console sg1506ltr sales bulletin.
Will actuate a set of form c. The wfs is used to monitor cooling system water flow. The digital no flow timer is an iso 9001 certified product and the iso certification can be viewed here. Proflo usb ir adaptor and proflo assist software papas1608ltr sales bulletin.
