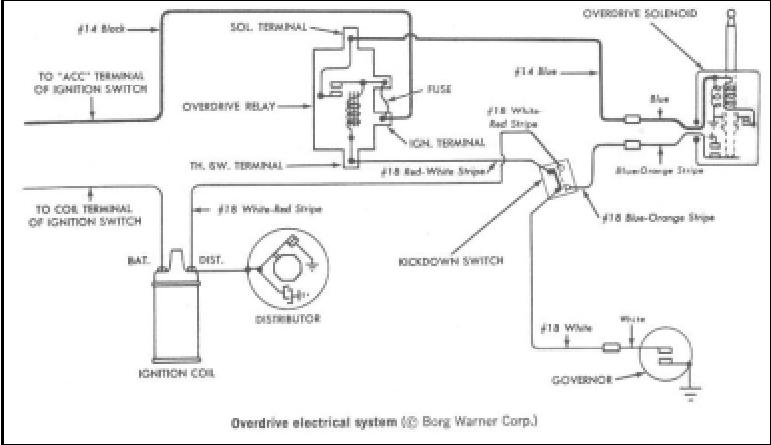

This is borg warners original wiring diagram scanned from a 1965 chiltons manual. If you have an all original truck with the overdrive this diagram should be usable.
Chevy Overdrive Wiring Diagram Borg Warner Overdrive Hot Rod
Borg warner overdrive wiring diagram. The dpdt relay in my circuit substitutes for the special kickdown switch that mounts above the gas pedal in the old vehicles. Overdrive was last used in ford passenger cars in 1967. They are not needed and your overdrive will work fine without one. A wiring diagram is a streamlined standard photographic depiction of an electrical circuit. February 8 2019 by larry a. This diagram can be used for most any borg warner overdrive application.
The wiring harness can be fabricated by connecting the terminals and components as shown in the wiring diagram see image while it seems. A wiring diagram is a streamlined traditional pictorial representation of an electric circuit. A few notes reverse lockout switches were discontinued by the factory somewhere around the early 1950s. Wellborn collection of borg warner overdrive wiring diagram. Most original ones no longer work so just bypass the switch. It reveals the parts of the circuit as simplified forms and the power as well as signal connections between the gadgets.
A wiring diagram is a streamlined traditional photographic representation of an electric circuit. As you can see it is pretty simple and basic. It shows the parts of the circuit as simplified forms as well as the power as well as signal connections in between the devices. Collection of borg warner overdrive wiring diagram. The picture above shows the borg warner overdrive wiring diagram. The borg warner overdrive transmission began its life in the 1930s and was last used anywhere in the automotive industry in ford trucks in 1972.
Assortment of borg warner overdrive wiring diagram. It reveals the parts of the circuit as simplified shapes as well as the power as well as signal connections in between the gadgets.
