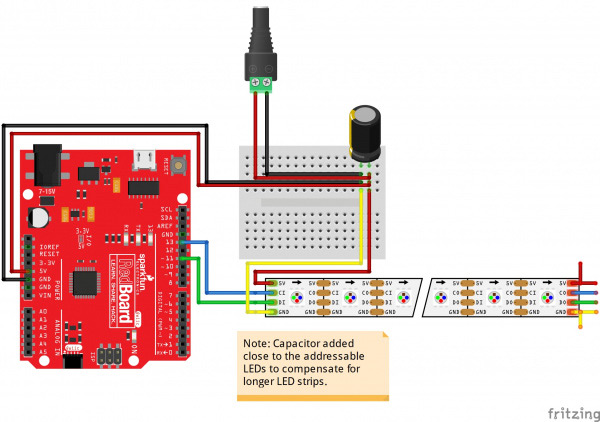

Addressable led strip wiring diagram. This tutorial covers all of the wiring and code necessary to light up a single string of addressable leds with just a redstick and a aa battery pack. These are also called individually addressable or just addressable. We want to connect wires to the in end so well use the group of 4 pads labeled gnddici5v. Digital strips come with rgb leds and have a driver chip on the strip that control the leds individually. Shown here is a strip using the lpd8806 driver. We show you how to wire the strip to the arduino and the code you need to upload to produce effects.

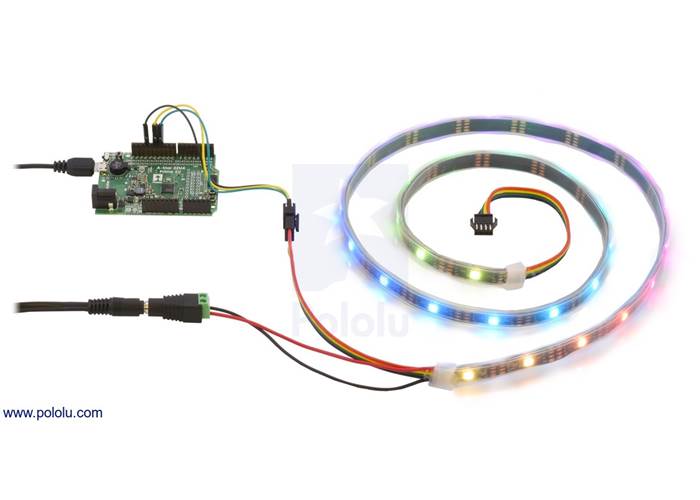

The strips have a positive voltage wire a ground and a data wire. This post is about the ws2812b led strip which is an addressable rgb led strip. We design it for you this page shows some typical wiring diagrams for led strips. This post is about the ws2812b led strip which is an addressable rgb led strip. Other popular ones you will see are using the ws2801 driver and strips using ws2812 rgb leds which have the drivers build right in the led package. The information in this post also works with other similar led strips such as strips of the ws28xx family neopixel strip and others.
Addressable led strip wiring diagram by facybulka posted on august 27 2017 18 views. And for that i heartily recommend an addressable led strip. Each time the data reaches an led it is read and passed down the strip to the next led. First chip reads the incoming address as led0 and then performs the instructions for led0 it also passes the data on to the next chip after increasing the counter value by 1. Its very bright super vivid and easy to hookup.
